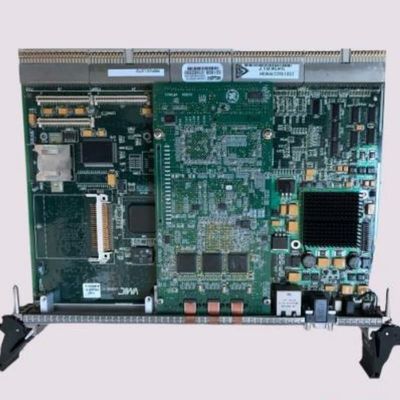

GE IS215UCCAM03A Compact PCI Processor Module Mark VI
| Place of Origin | US |
|---|---|
| نام تجاری | GE |
| Model Number | IS215UCCAM03A |
| Minimum Order Quantity | 1pc |
| قیمت | $2000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتس اپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| Name | GE IS215UCCAM03A Compact PCI Processor Module | Product ID | IS215UCCAM03A |
|---|---|---|---|
| Series | Mark VI | Function | Discrete Output pack |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| برجسته کردن | GE Mark VI processor module,Compact PCI turbine control module,IS215UCCAM03A processor module,Compact PCI turbine control module,IS215UCCAM03A processor module |
||
توضیحات محصول
GE IS215UCCAM03A Compact PCI Processor Module
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS215UCCAM03A Compact PCI Processor Module |
| Product ID | IS215UCCAM03A |
| Series | Mark VI |
| Function | Discrete Output pack |
| Dimensions (LxWxH) | 330mm x 100mm x 200mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Overview
The GE IS215UCCAM03A is a Compact PCI Processor Module serving as the compute engine for Mark VIe controllers in GE's VIe Series Distributed Control Systems. This industrial-grade module features a 650 MHz Intel Celeron processor with 128 MB flash memory and 128 MB DRAM, designed for single-slot installation in CPCI racks.
Key Features
- High-Performance Processing: 650 MHz Intel Celeron processor with 128 MB flash and DRAM for reliable control logic and data processing
- Advanced Connectivity: 10/100 Ethernet for UDH and R/S/T IONets with RS-232C COM1 port for setup
- Precision Synchronization: IEEE 1588 protocol ensures ±100 microsecond synchronization across I/O packs and controllers
- Expandable Architecture: Two PMC sites support additional hardware for custom applications
- Robust Design: Watchdog timer and dual power supply support for maximum system reliability
- Versatile Applications: Supports steam, gas, LM, and BOP systems with comprehensive DCS operation capabilities
Technical Details
This processor module integrates with the IS215UCCAH3 and IS200EPMC modules, providing critical communication and control functions in industrial environments. The compact design includes a CMOS battery with jumper for storage longevity, requiring reinstallation during setup.
