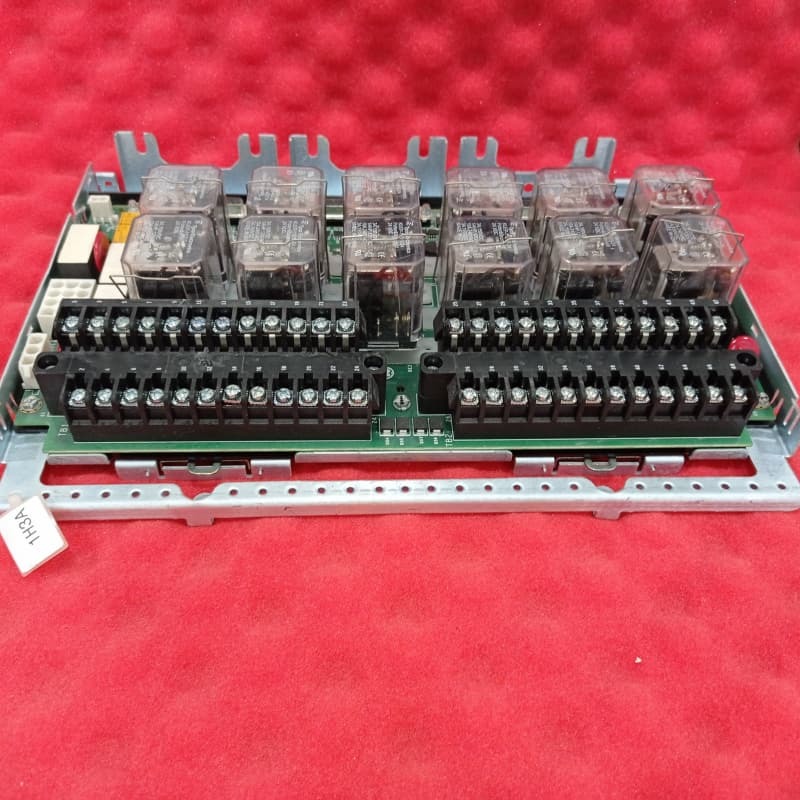

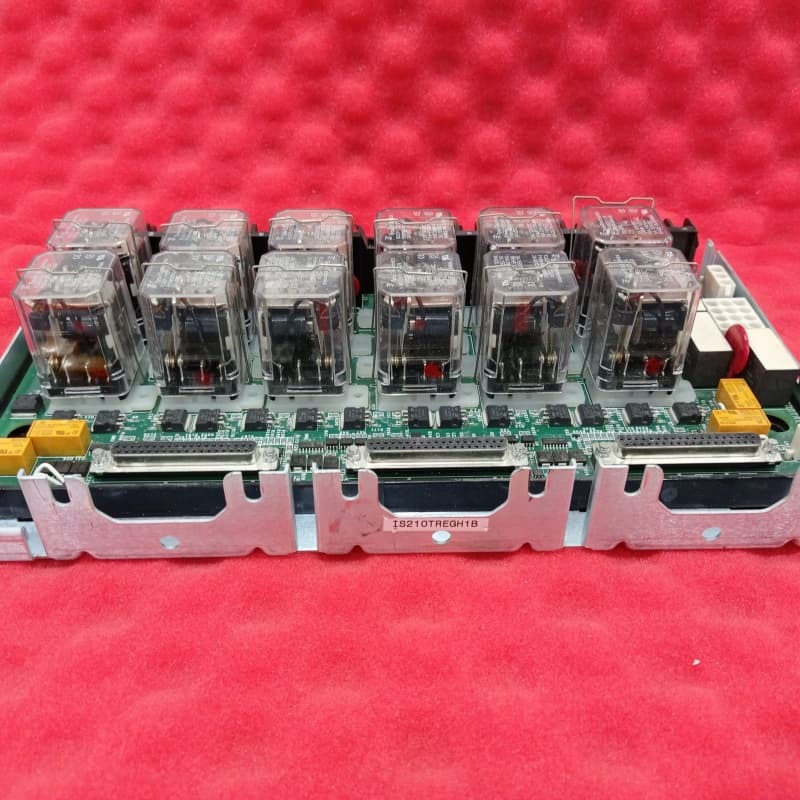

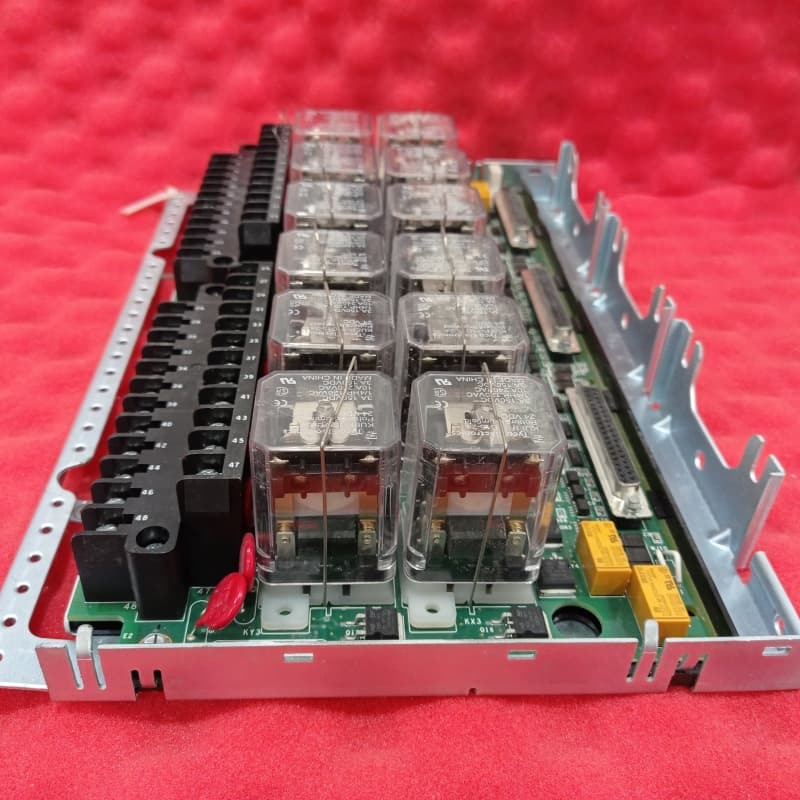

GE IS200JPDSG1AEC Mark VI Turbine Power Distribution Board
| محل منبع | ما |
|---|---|
| نام تجاری | GE |
| شماره مدل | IS200JPDSG1AEC |
| مقدار حداقل تعداد سفارش | 1 قطعه |
| قیمت | $6000 |
| جزئیات بسته بندی | کارخانه جدید و اصلی ، بسته بندی جعبه جداگانه |
| زمان تحویل | 5-7 روز |
| شرایط پرداخت | t/t |
| قابلیت ارائه | 999 قطعه |
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتس اپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| نام | هیئت توزیع برق GE IS200JPDSG1AEC | شناسه محصول | IS200JPDSG1AEC |
|---|---|---|---|
| سری | مارک ششم | عمل | هیئت ترمینال سفر اضطراری توربین |
| عمق/طول خالص محصول | 330 میلی متر | ارتفاع خالص محصول | 200 میلی متر |
| عرض خالص محصول | 100 میلی متر | وزن خالص محصول | 2 کیلوگرم |
| ضمانت | 1 سال | ||
| برجسته کردن | GE Mark VI turbine power board,turbine control distribution board,GE power distribution board with warranty,turbine control distribution board,GE power distribution board with warranty |
||
توضیحات محصول
GE IS200JPDSG1AEC Power Distribution Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200JPDSG1AEC Power Distribution Board |
| Product ID | IS200JPDSG1AEC |
| Series | Mark VI |
| Function | Turbine Emergency Trip Terminal Board |
| Dimensions (L×H×W) | 330mm × 200mm × 100mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Overview
The GE IS200JPDSG1AEC is a Jumper Power Distribution Board (PCB) designed for the Mark VI Turbine Control System Series, extending compatibility to gas, steam, and wind turbines—an upgrade from the Mark V Series.
Key Features
- Power Distribution: Handles 28V DC input with multiple output configurations (6×6-pin, 3×2-pin, and 3×2-pin) and a 5-screw terminal (35A) for daisy-chaining
- Diagnostic Integration: Connects to PPDA I/O packs via 62-pin D-Shell and 50-pin ribbon cables for comprehensive system monitoring
- Enhanced Reliability: Includes overcurrent protection and isolated test rings for safe voltage measurements
- Compact Design: Sheet metal-mounted with detailed wiring diagrams for secure installation
- Compatibility: Works with JPDB/JPDF/JPDE boards and PPDA packs in Mark VIe's PDM system
Technical Details
As a critical 28V DC power management component, the IS200JPDSG1AEC receives power from external AC/DC or DC/DC converters, distributing it to control system components. Its design includes enhanced features over the JPDM module, such as additional fuses, output connectors, and support for PPDA I/O packs via ribbon cables, facilitating diagnostic integration.
Manufactured with A/E/C-rated revisions, it mounts on a sheet metal structure and integrates seamlessly into Power Distribution Module (PDM) systems while complying with safety standards through proper grounding via sheet metal brackets to Functional Earth (FE).
Compatible Components
| DS200DTBBG1ABB | DS200TCCAF1BDF |
| DS200SDCIG2AFB | IS200ISBBG1AAB |
| DS200SDCIG2AHB | IS200CABPG1BAA |
| DS200BDAAG1AAA | IS200DSFCG1AEB |
| DS200SIOBH1ABA | IS200DRLYH1BBB |
