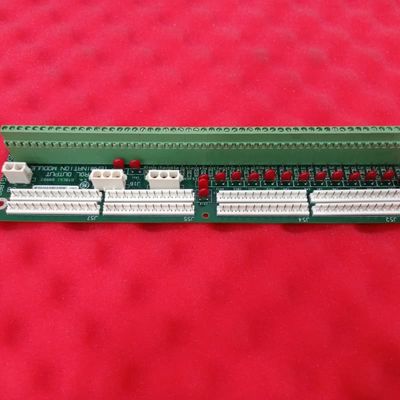

GE DS200DTBCG1AAA Contact Output Terminal Board 100mm x 200mm
| محل منبع | ایالات متحده آمریکا |
|---|---|
| نام تجاری | GE |
| گواهی | COO |
| شماره مدل | ds200dtbcg1aaa |
| مقدار حداقل تعداد سفارش | 1 |
| قیمت | $1000 |
| زمان تحویل | 5-7 روز |
| شرایط پرداخت | t/t |
| قابلیت ارائه | 999 |
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتس اپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| نام | GE Mark V DS200DTBCG1AAA ماژول خاتمه خروجی تماس | شناسه محصول | ds200dtbcg1aaa |
|---|---|---|---|
| سری | مارک V | عرض خالص محصول | 100 میلی متر |
| ارتفاع خالص محصول | 200 میلی متر | عمق/طول خالص محصول | 330 میلی متر |
| وزن خالص محصول | 2 کیلوگرم | ضمانت | 1 سال |
| برجسته کردن | GE turbine control terminal board,contact output terminal board 100mm x 200mm,GE DS200DTBCG1AAA terminal board with warranty,contact output terminal board 100mm x 200mm,GE DS200DTBCG1AAA terminal board with warranty |
||
توضیحات محصول
GE DS200DTBCG1AAA Contact Output Terminal Board 100mm x 200mm
Product Overview
The GE DS200DTBCG1AAA is a Contact Output Termination Module designed for GE's legacy Mark V Turbine Control System series. This module incorporates patented Speedtronic technology and is used to control GE-compatible gas, steam, and wind turbines. It represents a revised version of the original DS200DTBCG1 module, featuring a single A-rated functional update.
Technical Specifications
Installed at locations Q11, Q21, and Q51 within the Mark V system, its primary function is to terminate and route contact output signals. In Q21/Q51 positions, it links to 30 relays on the TCRA board, while in Q11 position, it connects to 4 TCRA contact output relays with specialized jumpers for gas manifold blow-off valve control.
Physical Characteristics
The module features two terminal blocks, 2 three-wire and 1 two-wire bayonet connectors, 10 jumpers, and dedicated connectors (JS1-JS8, J8, and J15/J16). Proper mounting and cable routing are critical for optimal performance.
Key Features
- Mark V Speedtronic Legacy Integration: Specifically designed for the Mark V system's turbine control, utilizing GE's proven Speedtronic technology for seamless integration with legacy setups.
- Location-Specific Configuration: Adapts to Q11 and Q21/Q51 positions to meet diverse turbine output requirements.
- High-Density Signal Management: Two terminal blocks efficiently handle up to 220 signal wires, with dedicated connectors for precise relay signal and power routing.
- Interference Mitigation: Requires strict cable separation or shielded wires to prevent signal noise, ensuring accurate output transmission. Fiber optic cables can be safely bundled with power cables.
- Thermal Safety: Relies on unobstructed drive airflow; proper mounting prevents cable bundles from blocking vents, protecting heated components.
Installation Requirements
Signal wires must be separated from "noisy" power cables to avoid interference, and airflow must not be blocked to prevent overheating. Proper cable management is essential for optimal performance and longevity.
