GE DS200TCEBG1A Protective Termination Expander Board with 200mm Height 2kg Weight and 1year Warranty for Mark V Turbine Control

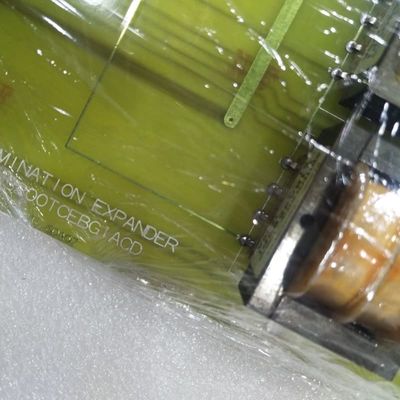

GE DS200TCEBG1A DS200TCEBG1ACD Protective Termination Expander Board

Product Details:

The GE DS200TCEBG1ACD is a Protective Termination Expander Board designed as a critical component within the General Electric Mark V Turbine Control System. This system is used for the automated control and management of gas, steam, and wind turbines. As part of the Mark V series, the board utilizes GE's patented Speedtronic technology and functions as a signal interface and conditioning module within the turbine drive assembly.

Key Features:

Core Function:Serves as a Protective Termination Expander Board, acting as a central interface point for various control and monitoring signals within the turbine system. It consolidates and routes critical inputs and outputs, such as trip commands and sensor feedback, ensuring reliable communication between the central control unit and the turbine's protective devices.

Heavy-Duty Construction:Designed with 8 screw holes to provide mechanical support for its own weight and the multiple heavy components installed on it. This robust mounting system is essential to withstand the significant vibration and shock commonly experienced in harsh industrial turbine environments, preventing board failure.

Signal Conditioning:Populated with 4 signal transformers and various other components like resistors, diodes, and capacitors to condition and protect signals. These components electrically isolate the sensitive control system, filter out noise, and clamp voltage transients, thereby ensuring signal integrity and protecting downstream circuitry from damage.

Key Interface Ports:Includes critical connectors labeled JKX/Y/Z, JMP, JU, JV, JVA, and JWX/Y/Z, which are essential for interfacing with the broader Mark V control system. These ports establish dedicated connections for power, sensor data, and control signals, forming the physical backbone of the turbine's automated protection and monitoring network.

Non-Configurable Design:The board is a hardware-based component that requires no software or hardware configuration; its functionality is fixed by its design. This "plug-and-play" characteristic simplifies installation and replacement, enhances reliability by eliminating configuration errors, and ensures consistent performance across the system.

Critical Installation Warning: The product manual emphasizes crucial safety and installation procedures, specifically highlighting the importance of properly labeling all cables before disconnection and ensuring no loose screws are left inside the drive to prevent short circuits, electric shock, fire, or damage to the equipment.
