GE DS200TBQDG1ACC Termination Board with Robust Termination Interface 2kg Weight and 1year Warranty for Mark V Turbine Control

GE DS200TBQDG1ACC TERM BD (R-S-T) EXT

Product Details:

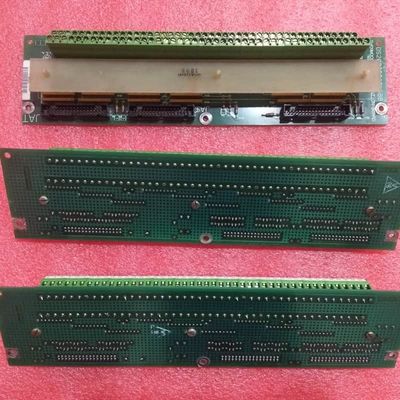

The DS200TBQDG1ACC is an RST Extension Analog Termination Board designed for General Electric's Mark V Turbine Control System. As part of the third-generation Speedtronic series, which utilizes a Triple Modular Redundant (TMR) architecture for maximum reliability, this PCB serves as a critical interface for analog signal termination. Its primary function is to provide a secure and configurable connection point for wiring within the system used to manage industrial gas and steam turbines.

Key Features:
Robust Termination Interface:The board features a double terminal strip running along one edge, providing multiple screw connections for secure and reliable wiring attachment to the analog control system.

Hardware Configuration via Jumpers:Its surface is populated with numerous jumper switches, allowing users to adjust the board's operational parameters and customize its behavior to meet specific application requirements within the turbine control scheme.

Integrated Overvoltage Protection:It incorporates three lines of metal oxide varistors (MOVs), which act as safeguards for sensitive circuitry by shunting excess voltage away from critical components, thereby enhancing the board's durability and reliability.

Advanced Board Components:The board is equipped with resistor network arrays for signal conditioning and six vertical pin connections, facilitating compact circuit design and stable integration with other system components.

TMR System Compatibility:Designed explicitly for the GE Mark V, a triple modular redundant (TMR) system, this board contributes to the overall high availability and fault-tolerant operation essential for critical turbine management.
