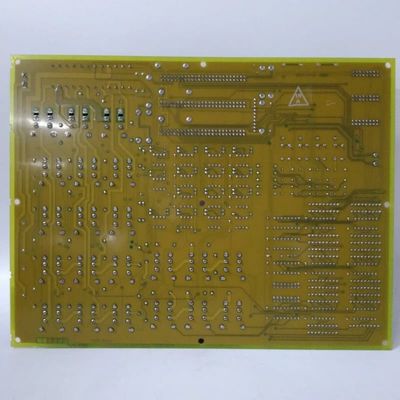

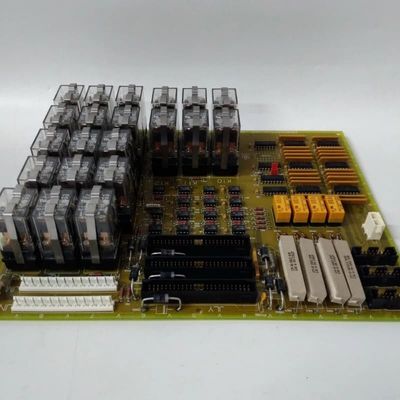

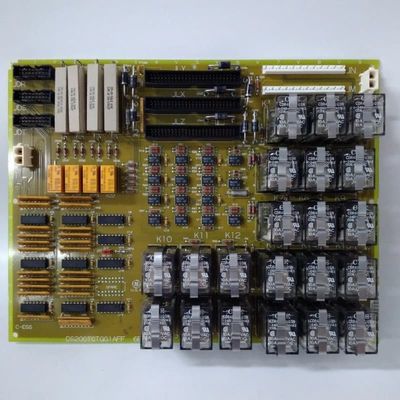

GE DS200TCTGG1AEE GT Trip Board with 330mm Length 100mm Width and 200mm Height for Gas Turbine Safety

GE DS200TCTGG1AEE GT TMR/SIMPLEX TRIP

Product Description:

The GE DS200TCTGG1AEE is a dedicated GT (Gas Turbine) Trip Board engineered for the Mark V Series turbine control systems, supporting both TMR (Triple Modular Redundancy) and Simplex configurations—critical for ensuring safe, reliable shutdowns in gas turbine operations. As a core safety component, it monitors key turbine parameters and triggers controlled trips to protect equipment from hazardous conditions like overspeed, overheating, or pressure anomalies, aligning with GE’s Speedtronic technology standards for industrial turbine safety.

Hardware-wise, the board integrates specialized components to enable its dual TMR/Simplex compatibility. TMR mode leverages redundant circuits and signal paths to minimize single-point failures, a must for high-reliability applications, while Simplex mode offers a streamlined, cost-effective solution for smaller-scale or less critical setups. It features dedicated connectors for interfacing with turbine sensors, control cores, and auxiliary safety systems, ensuring seamless signal transmission for real-time trip logic execution.

The DS200TCTGG1AEE also includes diagnostic elements to simplify maintenance: visual indicators alert operators to board status, circuit health, or trip trigger sources, reducing troubleshooting time. Its design incorporates voltage-stabilizing components and surge protection to withstand harsh industrial environments, from temperature fluctuations to electromagnetic interference common in gas turbine enclosures.
