Woodward 8444-1092 Multifunction Relay with CANopen / Modbus Communication for True RMS Measurement and FRT Applications
| محل منبع | آمریکا |
|---|---|
| نام تجاری | Woodward |
| شماره مدل | 8444-1092 |
| مقدار حداقل تعداد سفارش | 1 |
| قیمت | $4500 |
| زمان تحویل | 5-7 روز |
| شرایط پرداخت | T/T |
| قابلیت ارائه | 999 |
جزئیات محصول
| شناسه محصول | رله چند منظوره Woodward 8444-1092 با ارتباط CANopen / Modbus | نام تجاری | وودوارد |
|---|---|---|---|
| سری | 8444-1092 | شماره مدل | 8444-1092 |
| گارانتی | 1 سال | تابع | خوب |
| وضعیت | جدید | ||
| برجسته کردن | CANopen / Modbus Communication Multifunction Relay,True RMS Measurement Protection Relay,Fault Ride-Through (FRT) Applications PLC Module,True RMS Measurement Protection Relay,Fault Ride-Through (FRT) Applications PLC Module |
||
توضیحات محصول
Woodward 8444-1092 Multifunction Relay with CANopen / Modbus Communication
The Woodward 8444-1092 is a multifunction measuring transducer and protection relay designed for monitoring single‑phase and three‑phase power systems. It features voltage and current inputs for accurate true RMS measurement, even in the presence of harmonics, transients, or disturbances. A digital processor calculates key electrical values including real, reactive, and apparent power, as well as power factor (cos φ). These values are transmitted to supervisory control systems via CANopen or Modbus protocols. The unit also performs mains decoupling monitoring with four configurable undervoltage functions for fault ride‑through (FRT) applications, making it suitable for grid‑connected power generation and distribution systems.
Technical Specifications
| Product Type | PLC Module |
| Voltage | 240VDC |
| Color | Depend on product |
| Packing Size | 30 Cm X 20 Cm X 25 Cm |
| Operating Temperature | -20°C to +60°C |

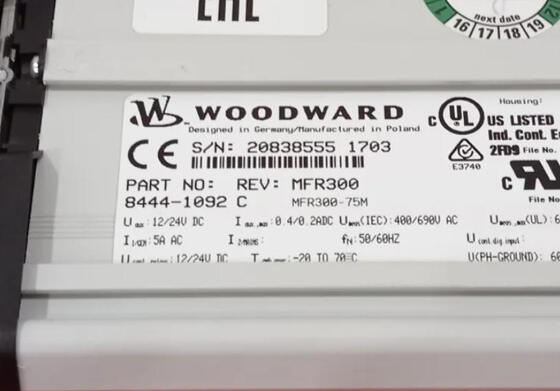

Product Images
Installation Requirements
Professional installation is essential to ensure optimal performance, operational safety, and compliance with industry standards. Proper implementation is critical for reliable system integration and long-term operational efficiency.
- Professional installation required for optimal performance and safety
- Ensure proper mounting and adequate ventilation
- Comply with all applicable electrical safety standards
