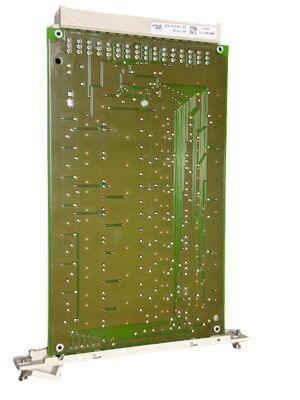

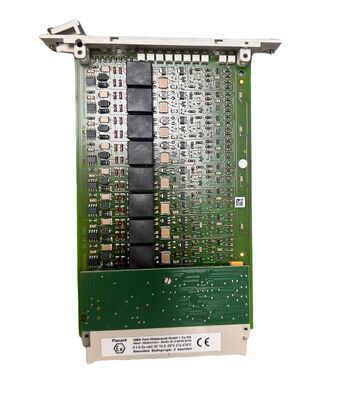

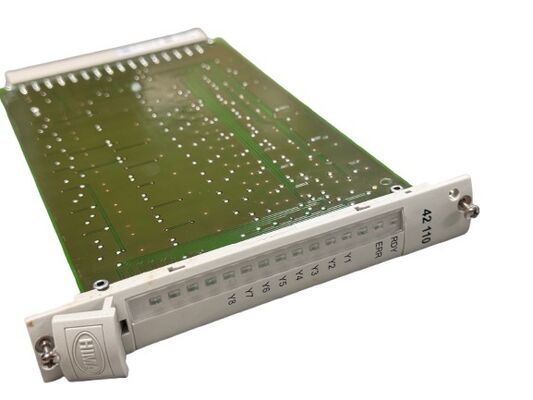

HIMA 42110 PLC Planar4 Module with SIL4-rated 8-fold AND Element and 2 inputs each for Safety Applications
| محل منبع | آلمان |
|---|---|
| نام تجاری | HIMA |
| شماره مدل | HIMA 42 110 |
| سند | Cert_DNV_HIMax_Planar4_Type...16.PDF |
| مقدار حداقل تعداد سفارش | 1 |
| قیمت | $999 |
| جزئیات بسته بندی | بسته استاندارد |
| زمان تحویل | 5-7 روز |
| شرایط پرداخت | T/T |
| قابلیت ارائه | 999 |
جزئیات محصول
| نام محصول | HIMA 42 110 Planar4 8-fold AND Element با 2 ورودی هر کدام SIL4/Kat.4 | ابعاد | 130 × 130 × 130 میلی متر |
|---|---|---|---|
| منبع محصول | آلمان | بندر حمل و نقل | Xiamen |
| پرداخت | T/T | وزن | 1.5 کیلوگرم |
| ساخت | هیما | حافظه | 128 مگابایت |
| برجسته کردن | SIL4-rated HIMA PLC,8-fold AND Element Planar4 Module,2 inputs each Logic Function Module,8-fold AND Element Planar4 Module,2 inputs each Logic Function Module |
||
توضیحات محصول
Product Description:
The HIMA 42 110 is a logic function module engineered for the Planar4 platform, specifically built for SIL 4-rated safety applications. It integrates eight independent 2-input AND logic functions and features built-in microcontroller supervision for reliable fault detection. This module is ideal for hardwired safety systems that demand deterministic execution and high availability, ensuring robust performance in mission-critical safety environments.
Features:
| Specification Category | Detailed Parameters |
| Model Number | 42 110 |
| Core Function | 8 × Independent 2-input AND logic elements |
| Fault Monitoring Mechanism | Internal microcontroller supervision |
| Switching Time | 2 ms |
| Reset Time | 8 ms |
| Operating Voltage | 24 V DC |
| Current Consumption | 140 mA |
| Physical Dimensions (Module Size) | 3U height, 4SU width |
| Safety Integrity Level (SIL) | SIL 4 (Compliant with IEC 61508 standard) |
One of the primary use cases for the HIMA PLC is in distributed control systems (DCS). The HIMA DCS Modules, are designed to provide seamless integration with other industrial automation components, making it an ideal option for those seeking a comprehensive control system.
Product Packaging:
- The HIMA PLC product will be packaged in a sturdy cardboard box to ensure safe transportation.
- The box will be labeled with the HIMA logo and product information.
- The product will be protected with bubble wrap and foam inserts to prevent damage during shipping.
Shipping:
- The HIMA PLC product will be shipped via a reliable courier service.
- Shipping fees will be calculated based on the destination and weight of the package.
- Customers can expect their product to arrive within 3-5 business days of placing their order.
- A tracking number will be provided to customers so they can track the progress of their shipment.
